Bitmovin Player & Vimond VIA

As the digital media landscape continues to evolve, the importance of delivering high-quality, scalable, and adaptable video content to users is paramount. Two names that often come up in conversations about advanced video streaming are Bitmovin Player and Vimond VIA. While each tool is powerful on its own, combining them can elevate your video delivery and user experience to new heights.

Bitmovin Player, renowned for its adaptive streaming capabilities, ensures that your content reaches audiences in the best quality possible, irrespective of their device or network conditions. On the other hand, Vimond VIA, a leading video content management platform, simplifies the complexities of managing, organizing, and distributing video assets.

This guide aims to bridge the gap between these two formidable technologies. Whether you’re an experienced developer familiar with one tool but new to the other or starting your journey with both, this resource is crafted to provide step-by-step instructions, best practices, and troubleshooting tips to seamlessly integrate Bitmovin Player with Vimond VIA for optimal video playout.

Let’s dive in and explore the synergy between these platforms, ensuring your audience enjoys an unparalleled video streaming experience!

Preface

This guide provides a step-by-step walkthrough to seamlessly integrate Bitmovin Player with Vimond VIA using React and TypeScript. By the end, you’ll have a video player that fetches and displays content with the option of subtitles and timeline markers.

Prerequisites: Familiarity with React, TypeScript, and basic knowledge of video streaming concepts.

Setting up

To kickstart our integration, let’s set up a new React app with TypeScript support

npx create-react-app vimond-bitmovin-demo --template typescript
cd vimond-bitmovin-demo
npm install bitmovin-player bitmovin-player-ui
npm start

You should see your demo app running at http://localhost:3000/ by default.

Open the newly created project in your favorite editor and modify App.tsx so we are left with the below.

import React, { useState } from 'react';
import './App.css';

function App() {

  return (
    <div className="App">
      Hello World!
    </div>
  );
}

export default App;

Adding the Vimond VIA API integration for Asset lookups

In order to fetch information about the Asset we are going to use the Content Discovery API.

To make it easier to work with the API responses from VIA we will be creating a few type definition files that we add to a folder src/types.

We start by the type for the Asset lookup found in the API reference: Retrieve an asset by its id

export type AssetType = {
    id: string;
    timestamp: string;
    createTime: string;
    images?: ImagesInfo;
    category: CategoryInfo;
    labeledAsFree: boolean;
    drmProtected: boolean;
    duration: number;
    assetType: string;
    isLive: boolean;
    isParent: boolean;
    transmissionTime: string;
    relatedAssets: any[]; // Define the proper type for related assets if needed
    qualities: any[]; // Define the proper type for qualities if needed
    startTime: number;
    endTime: number;
    version: VersionInfo;
    publishing: PublishingInfo;
    products: ProductInfo[];
    description: string;
    externalAssetId: string;
    publisherId: number;
    descriptionShort: string;
    mimirId: string;
    imagePack: string;
    mediaFeedId: string;
    title: string;
    importJobId: string;
};

type ImagesTemplates = {
    regions: string[];
    locations: string[];
    withRegion: string;
    withLocation: string;
    complete: string;
};

type ImagesInfo = {
    defaultUrl: string;
    version: string;
    templates: ImagesTemplates;
};

type CategoryInfo = {
    link: string;
    id: string;
};

type VersionInfo = {
    type: string;
    available: string[];
};

type PublishingInfo = {
    start: string;
    platform: string;
    geoExpressions: string[];
};

type ProductInfo = {
    id: string;
    name: string;
    accessType: string;
};

And AssetErrorCode.tsx for handling API error codes found on Error response

export const AssetErrorCode = {

    // Content discovery errors
    ASSET_NOT_FOUND: '2000',
    CATEGORY_NOT_FOUND: '2001',
    CONTENT_PANEL_NOT_FOUND: '2002',
    SHOW_NOT_FOUND: '2003',
    INVALID_SORT_PARAM: '2004',

} as const;

type ErrorInfo = {
    title: string;
    detail: string;
    code: string;
};

export type AssetErrorType = {
    errors?: readonly ErrorInfo[];
};

Back in our App.tsx we can now add the placeholders for our new asset state that we will fetch from the Vimond API.

import React, { useState } from 'react';
import './App.css';
import { AssetType } from './types/AssetType';
import { AssetErrorType } from './types/AssetErrorCode';

function App() {

  const [asset, setAsset] = useState<AssetType | undefined>(undefined);
  const [assetError, setAssetError] = useState<AssetErrorType | undefined>(undefined);

  return (
    <div className="App">
      Hello World!
    </div>
  );
}

export default App;

Next, we use the useEffect method as a natural place to add our actual API call.

For the below example, we use the sales tenant in the eu-north-1-prod environment with example asset 181878

import React, { useEffect, useState } from 'react';
import './App.css';
import { AssetType } from './types/AssetType';
import { AssetErrorType } from './types/AssetErrorCode';

function App() {

  const [asset, setAsset] = useState<AssetType | undefined>(undefined);
  const [assetError, setAssetError] = useState<AssetErrorType | undefined>(undefined);

  useEffect(() => {
      fetch(`https://sales.content-discovery.cf.eu-north-1-prod.vmnd.tv/api/v1/assets/181878`)
          .then(response => response.json())
          .then(data => {
            if(data.data) {
                setAsset({...data.data[0]} as AssetType);
            }
            if(data.errors) {
                setAssetError({ errors: data.errors})
            }
          })
          .catch(error => console.error(error));
  },[]);

  return (
    <div className="App">
      <h1>Asset:</h1>
      {JSON.stringify(asset)}
    </div>
  );
}

export default App;

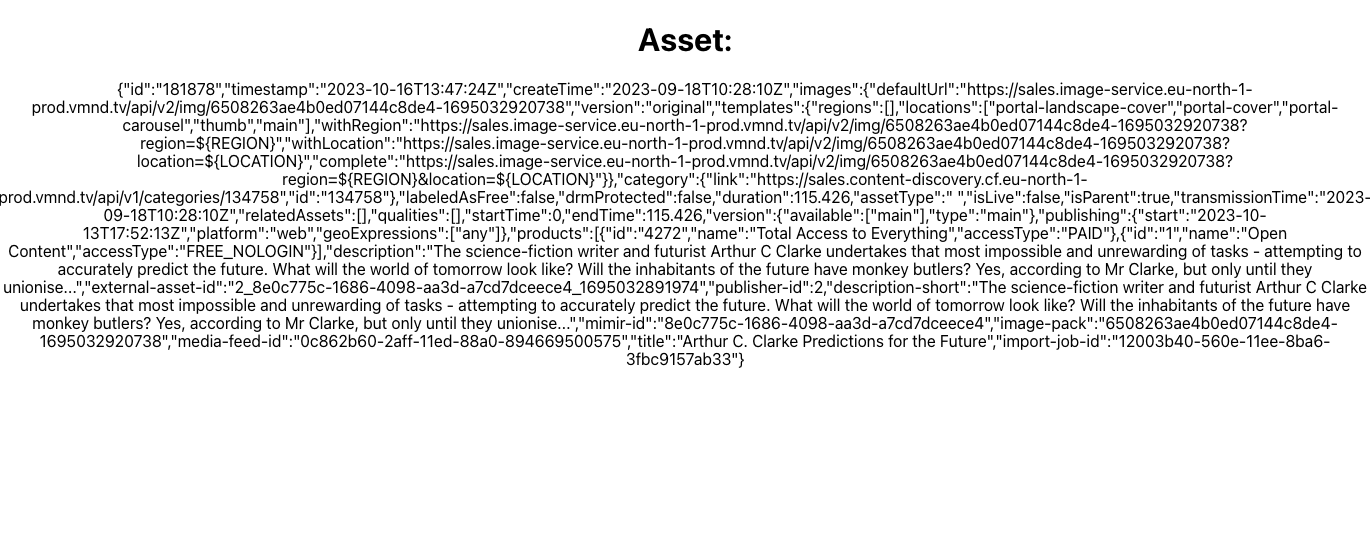

In order to help us see what is going on we simply output the raw JSON object to the screen.

Great! It looks like we now have the basic asset details available. However, in order to play back a video we will also need to use the Video Playback API to fetch valid stream options for our device.

Adding the Vimond VIA API integration for Asset Playback options

To make it easier to work with the API responses from VIA we will again be creating a few type definition files that we add to a folder src/types.

We start by the type for the Asset Playback found in the API reference: Get play urls for an asset

export type PlaybackType = {
    assetId: string;
    assetTitle: string;
    categoryId: string;
    startTime: number;
    endTime: number;
    duration: number;
    transmissionTime: string;
    isDrmProtected: boolean;
    isLive: boolean;
    recommendedStream?: StreamInfo;
    streamTemplate?: {
        profile: string[];
        provider: null[]; // You can define the proper type if needed
        mimeType: string[];
    };
    alternativeStreams?: StreamInfo[];
    subtitles?: SubtitleInfo[];
    markers?: MarkerInfo[];
    version: VersionInfo;
};

type StreamManifest = {
    headers: any[]; // You can define the proper type for headers if needed
    uri: string;
};

type StreamInfo = {
    id: string;
    bitrate: number;
    mediaFormat: string;
    mimeType: string;
    manifest: StreamManifest;
};

type SubtitleInfo = {
    name: string;
    locale: string;
    audience: string;
    contentType: string;
    url: string;
    checksum: {
        hashAlgorithm: string;
    };
};

type ImagesTemplates = {
    regions: string[];
    locations: string[];
    withRegion: string;
    withLocation: string;
    complete: string;
};

type ImagesInfo = {
    defaultUrl: string;
    version: string;
    templates: ImagesTemplates;
};

type MarkerInfo = {
    title: string;
    description: string;
    type: string;
    startTime: number;
    endTime: number;
    images?: ImagesInfo
};

type VersionInfo = {
    type: string;
    available: string[];
};

And PlaybackErrorCode.tsx for handling API error codes found on Error response

export const PlaybackErrorCode = {
    // Play service errors
    ASSET_NOT_FOUND: '3000',
    INVALID_LOCALES: '3001',
    MISSING_IP: '3002',
    MISSING_CONTENT_PACKAGE: '3003',
    MISSING_ENTITLEMENT: '3003',
    INVALID_GEO_LOCATION: '3004',
    NO_STREAM_AVAILABLE: '3005',
    DEVICE_LIMIT_EXCEEDED: '3006',
    INVALID_STREAM_PROFILE: '3007',
    UNSUFFICIENT_QUALITY_ENTITLEMENT: '3008',
    FAILED_TO_FETCH_LOG_DATA_CONFIGURATION: '3009',
    FAILED_TO_COMPUTE_LOG_DATA: '3010',
    ANONYMOUS_IP_NOT_ALLOWED: '3011',
    BAD_STREAM: '3012',
    ASSET_NOT_STARTED: '3013',
    INVALID_DEVICE_INFORMATION: '3014',
    INVALID_UNTIL_ENTITLEMENT_CLAIM: '3015',
    MALFORMED_ENTITLEMENTS_CLAIM: '3016',
} as const;

type ErrorInfo = {
    title: string;
    detail: string;
    code: string;
};

export type PlaybackErrorType = {
    errors?: readonly ErrorInfo[];
};

Back in our App.tsx we can now add the extra placeholders for our new asset playback state that we will fetch from the Vimond API.

import React, { useEffect, useState } from 'react';
import './App.css';
import { AssetType } from './types/AssetType';
import { AssetErrorType } from './types/AssetErrorCode';
import { PlaybackType } from './types/PlaybackType';
import { PlaybackErrorType } from './types/PlaybackErrorCode';

function App() {

  const [asset, setAsset] = useState<AssetType | undefined>(undefined);
  const [assetError, setAssetError] = useState<AssetErrorType | undefined>(undefined);
  const [playback, setPlayback] = useState<PlaybackType | undefined>(undefined);
  const [playbackError, setPlaybackError] = useState<PlaybackErrorType | undefined>(undefined);


  useEffect(() => {
      fetch(`https://sales.content-discovery.cf.eu-north-1-prod.vmnd.tv/api/v1/assets/181878`)
          .then(response => response.json())
          .then(data => {
            if(data.data) {
                setAsset({...data.data[0]} as AssetType);
            }
            if(data.errors) {
                setAssetError({ errors: data.errors})
            }
            const requestOptions = {
              method: 'POST',
              headers: {
                  'Content-Type': 'application/json'
              },
            }
            fetch(`https://sales.play.cf.eu-north-1-prod.vmnd.tv/api/v2/asset/181878/play?extraFields=markers,alternativeStreams,streamsTemplate`, requestOptions)
                .then(response => response.json())
                .then(data => {
                    if(data.data) {
                        setPlayback({...data.data[0]} as PlaybackType);
                    }
                    if(data.errors) {
                        setPlaybackError({ errors: data.errors} );
                    }
                })
                .catch(error => console.error(error));
          })
          .catch(error => console.error(error));
  },[]);

  return (
    <div className="App">
      <h1>Asset:</h1>
      {JSON.stringify(asset)}
      <h1>Playback:</h1>
      {JSON.stringify(playback)}
    </div>
  );
}

export default App;

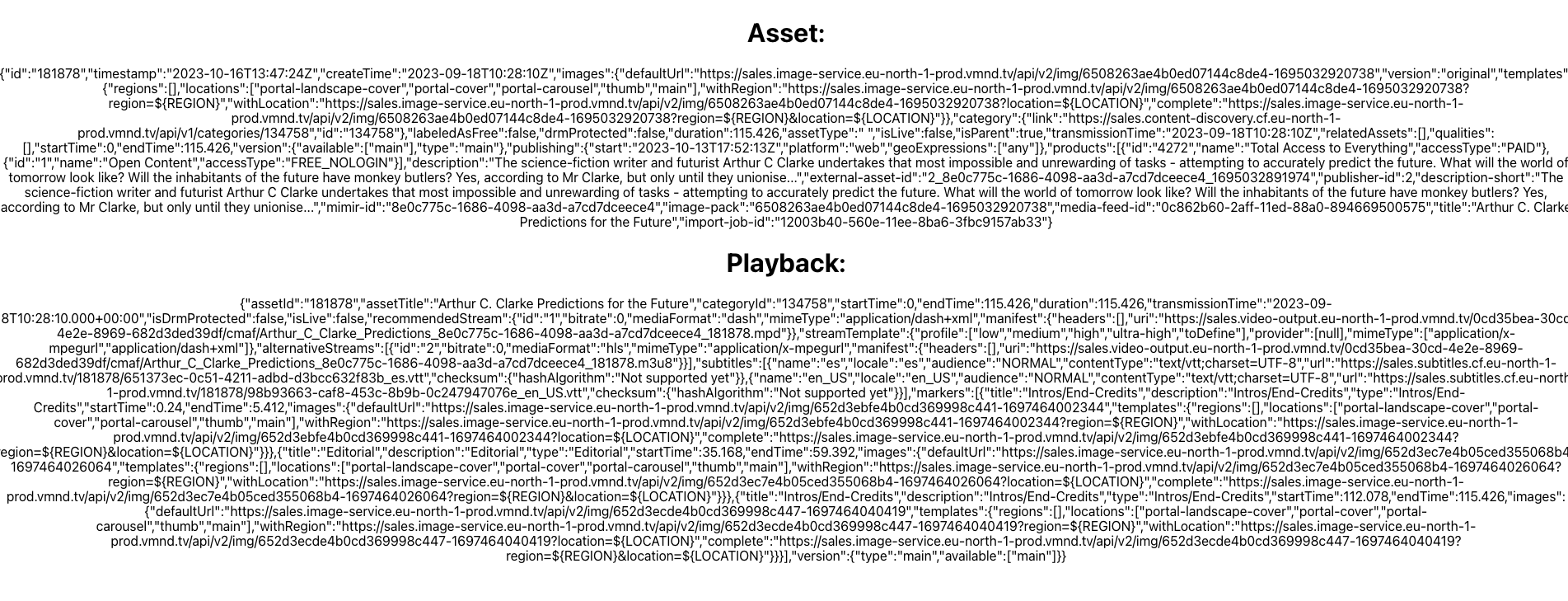

Great! Our little demo app can now fetch both asset and playback data from Vimond VIA.

Next we will look at how we can use this with the Bitmovin Player to trigger video playback.

Adding the Bitmovin Player

We start by creating a new react component for the Bitmovin player based on their example provided.

import {useEffect, useRef, useState} from 'react';
import {Player, PlayerAPI, PlayerConfig, SourceConfig} from 'bitmovin-player/modules/bitmovinplayer-core';
import EngineBitmovinModule from 'bitmovin-player/modules/bitmovinplayer-engine-bitmovin';
import EngineNativeModule from 'bitmovin-player/modules/bitmovinplayer-engine-native';
import MseRendererModule from 'bitmovin-player/modules/bitmovinplayer-mserenderer';
import HlsModule from 'bitmovin-player/modules/bitmovinplayer-hls';
import DashModule from 'bitmovin-player/modules/bitmovinplayer-dash';
import AbrModule from 'bitmovin-player/modules/bitmovinplayer-abr';
import XmlModule from 'bitmovin-player/modules/bitmovinplayer-xml';
import ContainerTSModule from 'bitmovin-player/modules/bitmovinplayer-container-ts';
import ContainerMp4Module from 'bitmovin-player/modules/bitmovinplayer-container-mp4';
import SubtitlesModule from 'bitmovin-player/modules/bitmovinplayer-subtitles';
import SubtitlesCEA608Module from 'bitmovin-player/modules/bitmovinplayer-subtitles-cea608';
import SubtitlesVTTModule from 'bitmovin-player/modules/bitmovinplayer-subtitles-vtt';
import SubtitlesNativeModule from 'bitmovin-player/modules/bitmovinplayer-subtitles-native';
import PolyfillModule from 'bitmovin-player/modules/bitmovinplayer-polyfill';
import StyleModule from 'bitmovin-player/modules/bitmovinplayer-style';
import {UIFactory, UIManager} from 'bitmovin-player-ui';
import 'bitmovin-player/bitmovinplayer-ui.css';
import {AssetType} from "../types/AssetType";
import {PlaybackType} from "../types/PlaybackType";

type BitmovinPlayerProps = {
    asset: AssetType,
    playback: PlaybackType
};
const BitmovinPlayer = ({asset, playback}: BitmovinPlayerProps) => {

    const [player, setPlayer] = useState<PlayerAPI | null>(null);
    const [uiManager, setUiManager] = useState<UIManager | null>(null)

    const playerConfig:PlayerConfig = {
        key: '<INSERT YOUR BITMOVIN KEY>',
    };

    const playerDiv = useRef<HTMLDivElement>(null);

    useEffect(() => {
        if(!playerDiv.current) return;

        const recommendedStream = playback.recommendedStream;
        const alternativeStreams = playback.alternativeStreams;

        const dash = recommendedStream?.mediaFormat === 'dash' ? recommendedStream : alternativeStreams?.find(s => s.mediaFormat === 'dash');
        const hls = recommendedStream?.mediaFormat === 'hls' ? recommendedStream : alternativeStreams?.find(s => s.mediaFormat === 'hls');

        // select portal landscape cover if available
        const imageLocation = asset.images?.templates.locations.find( l => l === 'portal-landscape-cover') || 'main';
        const poster = asset.images?.defaultUrl + `?location=${imageLocation}&height=${document.body.clientHeight}&width=${document.body.clientWidth}`;

        const playerSource:SourceConfig = {
            dash : dash?.manifest.uri,
            hls: hls?.manifest.uri,
            poster,
        };

        Player.addModule(EngineBitmovinModule);
        Player.addModule(EngineNativeModule);
        Player.addModule(MseRendererModule);
        Player.addModule(HlsModule);
        Player.addModule(XmlModule);
        Player.addModule(DashModule);
        Player.addModule(AbrModule);
        Player.addModule(ContainerTSModule);
        Player.addModule(ContainerMp4Module);
        Player.addModule(SubtitlesModule);
        Player.addModule(SubtitlesCEA608Module);
        Player.addModule(SubtitlesVTTModule);
        Player.addModule(SubtitlesNativeModule);
        Player.addModule(PolyfillModule);
        Player.addModule(StyleModule);

        const playerInstance = new Player(playerDiv.current, playerConfig);
        setPlayer(playerInstance)
        setUiManager(UIFactory.buildDefaultUI(playerInstance));

        playerInstance.load(playerSource).then(() => {
            console.log('Successfully loaded source');
        }, () => {
            console.log('Error while loading source');
        });

        return () => {
            if (player != null) {
                player.destroy();
                setPlayer(null);
            }
            if(uiManager !== null) {
                uiManager.release();
            }
        }
    }, [])

    return <div id='player' ref={playerDiv}/>;
}

export default BitmovinPlayer;

Before you proceed, ensure you replace with your personal Bitmovin key.

Back in our App.tsx we can now use the new Bitmovin Player component that takes the asset and playback state as props.

import React, { useEffect, useState } from 'react';
import './App.css';
import { AssetType } from './types/AssetType';
import { AssetErrorType } from './types/AssetErrorCode';
import { PlaybackType } from './types/PlaybackType';
import { PlaybackErrorType } from './types/PlaybackErrorCode';
import BitmovinPlayer from './components/BitmovinPlayer';

function App() {

  const [asset, setAsset] = useState<AssetType | undefined>(undefined);
  const [assetError, setAssetError] = useState<AssetErrorType | undefined>(undefined);
  const [playback, setPlayback] = useState<PlaybackType | undefined>(undefined);
  const [playbackError, setPlaybackError] = useState<PlaybackErrorType | undefined>(undefined);


  useEffect(() => {
      fetch(`https://sales.content-discovery.cf.eu-north-1-prod.vmnd.tv/api/v1/assets/181878`)
          .then(response => response.json())
          .then(data => {
            if(data.data) {
                setAsset({...data.data[0]} as AssetType);
            }
            if(data.errors) {
                setAssetError({ errors: data.errors})
            }
            const requestOptions = {
              method: 'POST',
              headers: {
                  'Content-Type': 'application/json'
              },
            }
            fetch(`https://sales.play.cf.eu-north-1-prod.vmnd.tv/api/v2/asset/181878/play?extraFields=markers,alternativeStreams,streamsTemplate`, requestOptions)
                .then(response => response.json())
                .then(data => {
                    if(data.data) {
                        setPlayback({...data.data[0]} as PlaybackType);
                    }
                    if(data.errors) {
                        setPlaybackError({ errors: data.errors} );
                    }
                })
                .catch(error => console.error(error));
          })
          .catch(error => console.error(error));
  },[]);

  return (
    <div className="App">
      {asset && playback ? <BitmovinPlayer asset={asset} playback={playback} /> : <></>}
    </div>
  );
}

export default App;

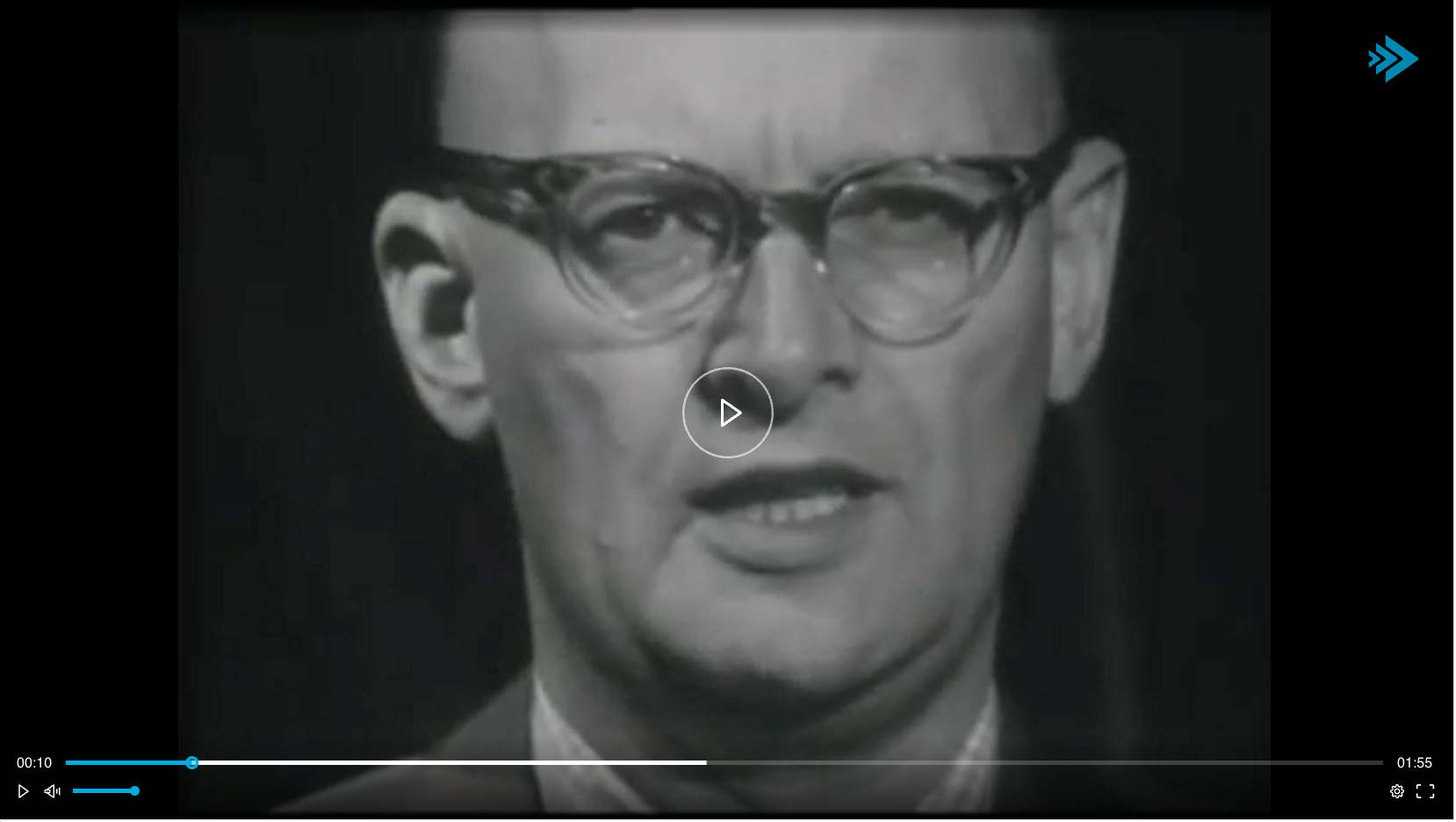

Great! We now have a video playing!

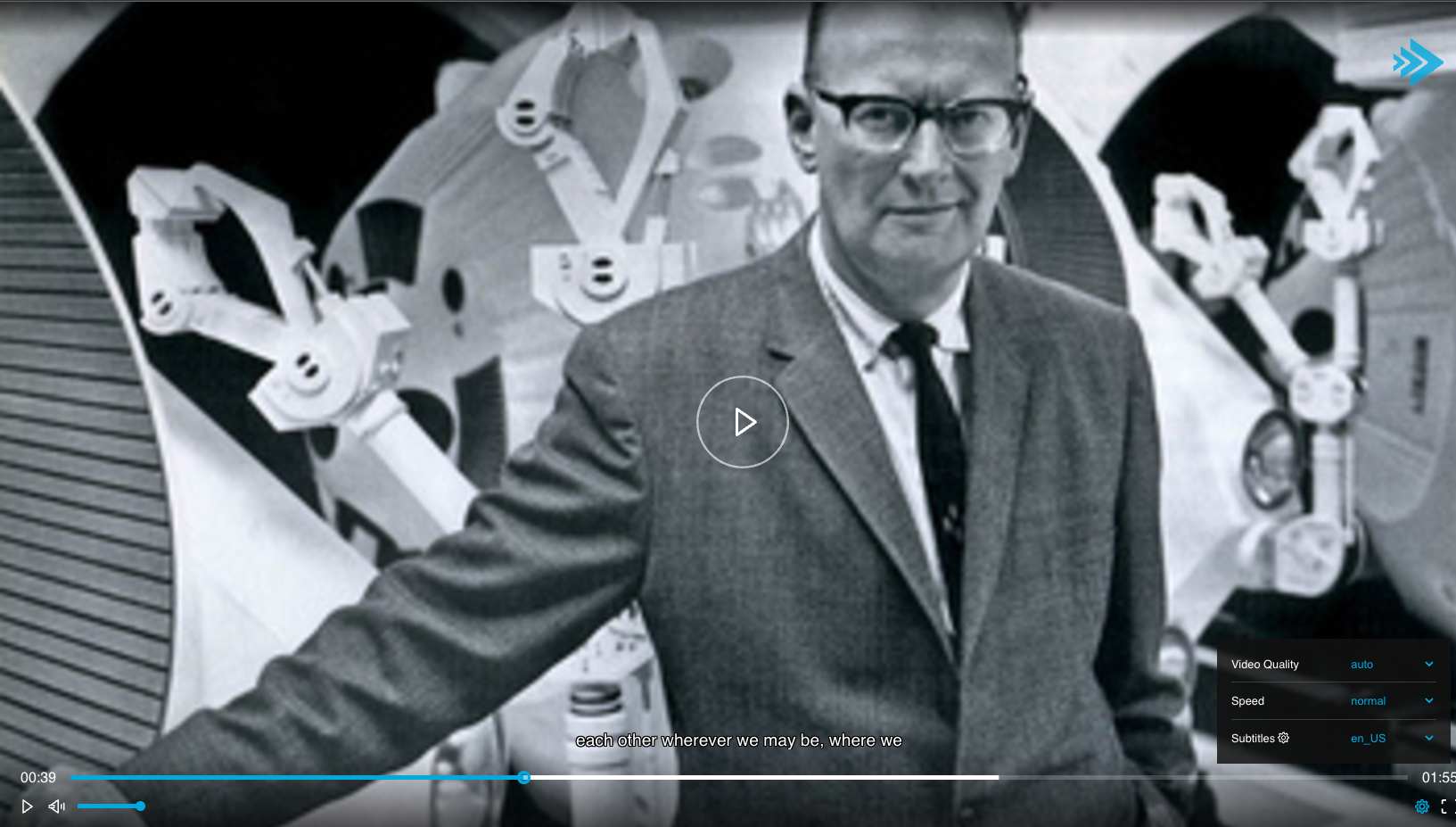

Adding subtitles

Adding the subtitles now becomes a trivial task of updating the BitmovinPlayer.tsx to add the subtitles after loading the source video

...
        playerInstance.load(playerSource).then(() => {

            // subtitles
            // https://developer.bitmovin.com/playback/docs/how-to-add-external-subtitles-to-the-bitmovin-player
            playback.subtitles?.forEach(s => {
                playerInstance.subtitles.add({
                    id: s.name,
                    lang: s.locale,
                    label: s.name,
                    kind: s.audience === 'NORMAL' ? 'subtitle' : 'caption',
                    url: s.url
                });
            });

            console.log('Successfully loaded source');
        }, () => {
            console.log('Error while loading source');
        });
...

Adding Timeline markers

We can also add the available timeline markers by adding them to the playerSource

...
      const playerSource:SourceConfig = {
            dash : dash?.manifest.uri,
            hls: hls?.manifest.uri,
            poster,

            // https://github.com/bitmovin/bitmovin-player-web-samples/blob/main/playerUi/timelineMarkers.html
            // @ts-ignore
            markers: playback.markers?.map(m => ({
                time: m.startTime,
                title: m.title,
                duration: Math.floor(m.endTime - m.startTime),
                imageUrl: m.images?.defaultUrl
            }))
        };
...

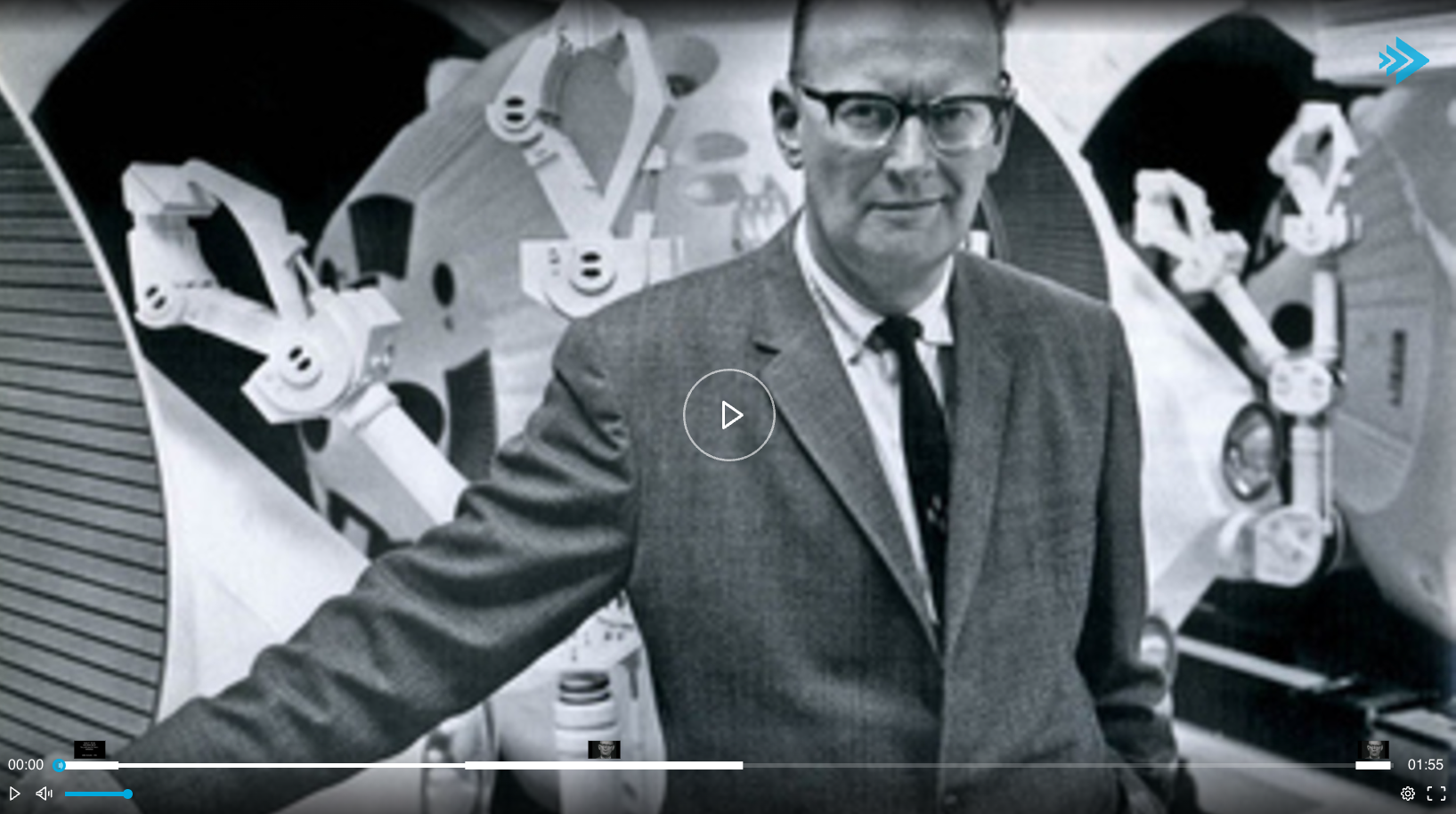

We now also have the chapter markers added that the user can use for navigating the video.

The final resulting code

import {useEffect, useRef, useState} from 'react';
import {Player, PlayerAPI, PlayerConfig, SourceConfig} from 'bitmovin-player/modules/bitmovinplayer-core';
import EngineBitmovinModule from 'bitmovin-player/modules/bitmovinplayer-engine-bitmovin';
import EngineNativeModule from 'bitmovin-player/modules/bitmovinplayer-engine-native';
import MseRendererModule from 'bitmovin-player/modules/bitmovinplayer-mserenderer';
import HlsModule from 'bitmovin-player/modules/bitmovinplayer-hls';
import DashModule from 'bitmovin-player/modules/bitmovinplayer-dash';
import AbrModule from 'bitmovin-player/modules/bitmovinplayer-abr';
import XmlModule from 'bitmovin-player/modules/bitmovinplayer-xml';
import ContainerTSModule from 'bitmovin-player/modules/bitmovinplayer-container-ts';
import ContainerMp4Module from 'bitmovin-player/modules/bitmovinplayer-container-mp4';
import SubtitlesModule from 'bitmovin-player/modules/bitmovinplayer-subtitles';
import SubtitlesCEA608Module from 'bitmovin-player/modules/bitmovinplayer-subtitles-cea608';
import SubtitlesVTTModule from 'bitmovin-player/modules/bitmovinplayer-subtitles-vtt';
import SubtitlesNativeModule from 'bitmovin-player/modules/bitmovinplayer-subtitles-native';
import PolyfillModule from 'bitmovin-player/modules/bitmovinplayer-polyfill';
import StyleModule from 'bitmovin-player/modules/bitmovinplayer-style';
import {UIFactory, UIManager} from 'bitmovin-player-ui';
import 'bitmovin-player/bitmovinplayer-ui.css';
import {AssetType} from "../types/AssetType";
import {PlaybackType} from "../types/PlaybackType";

type BitmovinPlayerProps = {
    asset: AssetType,
    playback: PlaybackType
};
const BitmovinPlayer = ({asset, playback}: BitmovinPlayerProps) => {

    const [player, setPlayer] = useState<PlayerAPI | null>(null);
    const [uiManager, setUiManager] = useState<UIManager | null>(null)

    const playerConfig:PlayerConfig = {
        key: '<INSERT YOUR BITMOVIN KEY>',
    };

    const playerDiv = useRef<HTMLDivElement>(null);

    useEffect(() => {
        if(!playerDiv.current) return;

        const recommendedStream = playback.recommendedStream;
        const alternativeStreams = playback.alternativeStreams;

        const dash = recommendedStream?.mediaFormat === 'dash' ? recommendedStream : alternativeStreams?.find(s => s.mediaFormat === 'dash');
        const hls = recommendedStream?.mediaFormat === 'hls' ? recommendedStream : alternativeStreams?.find(s => s.mediaFormat === 'hls');

        // select portal landscape cover if available
        const imageLocation = asset.images?.templates.locations.find( l => l === 'portal-landscape-cover') || 'main';
        const poster = asset.images?.defaultUrl + `?location=${imageLocation}&height=${document.body.clientHeight}&width=${document.body.clientWidth}`;

        const playerSource:SourceConfig = {
            dash : dash?.manifest.uri,
            hls: hls?.manifest.uri,
            poster,

            // https://github.com/bitmovin/bitmovin-player-web-samples/blob/main/playerUi/timelineMarkers.html
            // @ts-ignore
            markers: playback.markers?.map(m => ({
                time: m.startTime,
                title: m.title,
                duration: Math.floor(m.endTime - m.startTime),
                imageUrl: m.images?.defaultUrl
            }))
        };

        Player.addModule(EngineBitmovinModule);
        Player.addModule(EngineNativeModule);
        Player.addModule(MseRendererModule);
        Player.addModule(HlsModule);
        Player.addModule(XmlModule);
        Player.addModule(DashModule);
        Player.addModule(AbrModule);
        Player.addModule(ContainerTSModule);
        Player.addModule(ContainerMp4Module);
        Player.addModule(SubtitlesModule);
        Player.addModule(SubtitlesCEA608Module);
        Player.addModule(SubtitlesVTTModule);
        Player.addModule(SubtitlesNativeModule);
        Player.addModule(PolyfillModule);
        Player.addModule(StyleModule);

        const playerInstance = new Player(playerDiv.current, playerConfig);
        setPlayer(playerInstance)
        setUiManager(UIFactory.buildDefaultUI(playerInstance));

        playerInstance.load(playerSource).then(() => {

            // subtitles
            // https://developer.bitmovin.com/playback/docs/how-to-add-external-subtitles-to-the-bitmovin-player
            playback.subtitles?.forEach(s => {
                playerInstance.subtitles.add({
                    id: s.name,
                    lang: s.locale,
                    label: s.name,
                    kind: s.audience === 'NORMAL' ? 'subtitle' : 'caption',
                    url: s.url
                });
            });

            console.log('Successfully loaded source');
        }, () => {
            console.log('Error while loading source');
        });

        return () => {
            if (player != null) {
                player.destroy();
                setPlayer(null);
            }
            if(uiManager !== null) {
                uiManager.release();
            }
        }
    }, [])

    return <div id='player' ref={playerDiv}/>;
}

export default BitmovinPlayer;

Conclusion

Congratulations! You’ve successfully integrated Bitmovin Player with Vimond VIA using React and TypeScript. Your video player can now fetch and play content, with optional subtitles and timeline markers. You can further expand on this foundation by exploring more advanced features or troubleshooting any issues.
